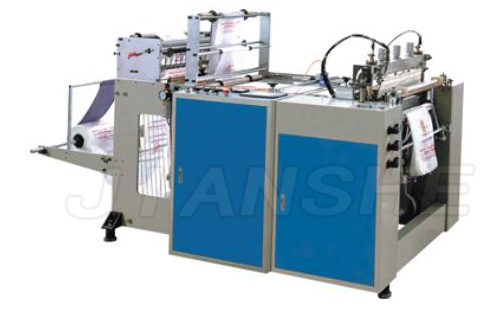

| FQ-B Heat Sealing and Cutting Bag-making Machine |
■USE
This machine is suitable for heat-sealing and thermal cutting of such plastic films as LDPE and HDPE, etc. And it is a kind of equipment for specially producing vest bags of natural color and multicolor. |
■Performance and Characteristics
This machine adopts microcomputer control, material towing by stepping motor (which can be equipped with servomotor control system), accurate sealing and cutting size. automatic counting and alarm and whole copy output system, photoelectric switch monitoring, stable and reliable feeding, automatically stopping the machine when the sign is lost. Main motor by inverter control makes the equipment stable and electricity-saving. Thermal cutting device with new style design, easy and fast pressure adjustment of sealing and cutting knife, 180 integral turnover, easy clearing and replacing the teflon. |
| ■Main Technical Variables |
| Bag Making Width |
600mm |
| Bag Making Speed |
30-180pcs/min |
| Electric Heat Power |
2.0kw |
| Power of Main Motor |
1.1kw |
| Film Thickness |
0.01-0.05mm |
| Overall Dimensions(LxWxH) |
2900×1160×1400mm | |
 |
