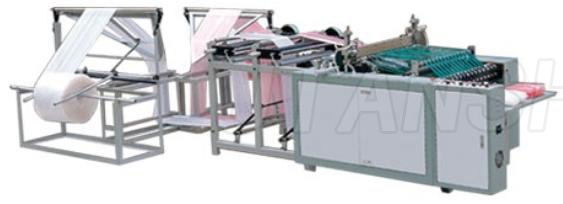

| RQ-C Bubble Film Bag Making Machine |
■USE
This machine used for packing,household wares,post parcel precise instrument,bicycle, polyurethane furniture,etc. |
■Performance and Characteristics
Two sides water cooled compress, hot cutting in the middle,trims are need and tight, cooling is fast.Automatic folding with optional edge aligned or staggered forming. Improved production rate with stored feeding section can feed two threads at the same time.Advanced control system to control the bag length with a server motor system, variable speed drive to control production speed. |
| ■Main Technical Variables |
| Modles |
Max width(mm) |
Max length(mm) |
Capacity(pcs/min) |
Total power (kw) |
Weight(kg) |
| RQ-C1000 |
1000 |
850 |
20-120 |
6.5 |
850 |
| RQ-C750 |
750 |
800 |
20-120 |
6.0 |
660 | |
 |
