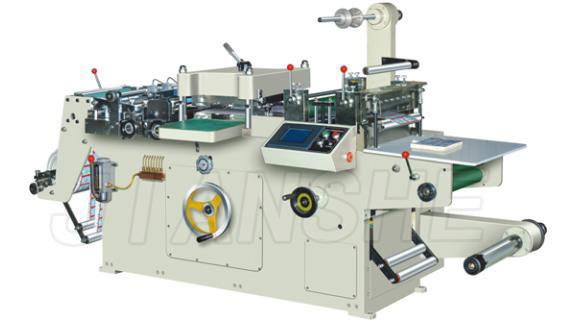

| MQ Die-Cutting Machine For Self |
■USE
This machine is suitable for die-cutting adhesive paper, dacron label and laser hologram mark. This is the copulate equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine. It's the most efficient machine for printing house. |
■Performance and Characteristics
This machine is applicable to die cut through platen with high precision, material towing is controlled by servo motor, The sides of trademarks and longitudinal route are tracked through three photoelectric to position,. Die-cutting, waste rewinding and rewinding and laminating can be finished in one process. |
| ■Main Technical Variables |
| Die Cutting Speed |
20-170times/min |
| Max feeding diameter |
450mm |
| Max Web Width |
320mm |
| Max Die Cutting Width |
300mm |
| Max Die Cutting Length |
290mm |
| Positioning Precision |
±0.15mm |
| Total Power |
2.5kw |
| Power Supply Voltage |
220V±10% |
| Weight |
about 1500kg |
| Overall dimension |
2600×950×1400 | |
 |
