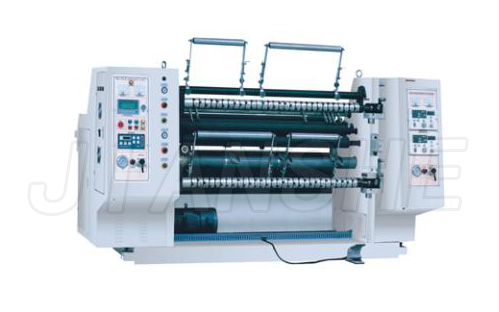

| HFQ High speed slitting machine |
¡öUSE
The machine is applicable to slitting of reel materials such as BOPP, PET.CPP, CPE .PVC ,Aluminum fiol ,and paper. |
¡öPerformance and Characteristics
1. Main motor adopt frequency conversion motor equipped with transducer produced by YASKAWA (JAPAN);
2. Unwinding reels adopt automatic constant tension control system made by RE(ITALY);
3. Two rewinding shafts adopt mechanical expanding shafts;
4. Offset correction system adopt photoelectric controller made by MITSUHASHI (JAPAN) to track the edge and line. |
| ¡öMain Technical Variables |
| Slitting materials |
Plastic films, paper and soft packing materials |
| Slitting Width |
30-1300mm |
| Slitting Speed |
250m/min |
| Max.Unwinding Diameter |
¦µ800mm |
| Rewinding Diameter |
¦µ450mm | |
 |
|
