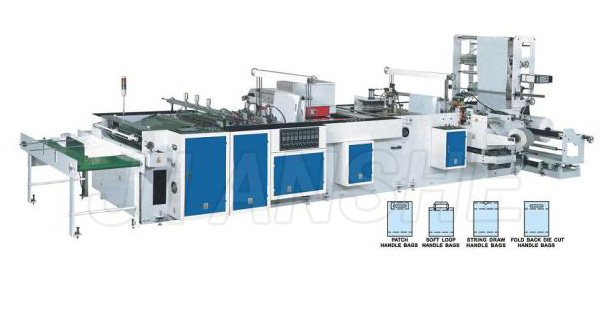

HB-C soft loop handle bag making machine

This machine can make four kind of bags such as soft loop handle bags, patch handle bags, string draw handle bags and fold back die cut handle bags.
¡öPerformance and Characteristics

The drive system of whole machine adopt PLC (Programmable Controller. Main motor by inverter control, Handle punching is thermal punching, automatic collecting of wastes. The machine possesses the automatic alarm functions of sign losing. temperature exceeding limit. counting down and the deliver of finished products.
¡öMain Technical Variables
Type 800
Length of bag-making 250-750mm
Width of bag-making 250-600mm
Pre-folded edge 50-75mm
Bottom-inserted edge 20-70mm
Thickness of film 0.04-0.1mm
Speed of bag-making Soft hand bag 55bags/min
Patch bag 55bags/min
String draw bag 65bags/min
folding punching bag 70bags/min
Total power 11KW
Overall dimension 8200*3100*1870mm
weight 3500kg
Air compressor 7HP
